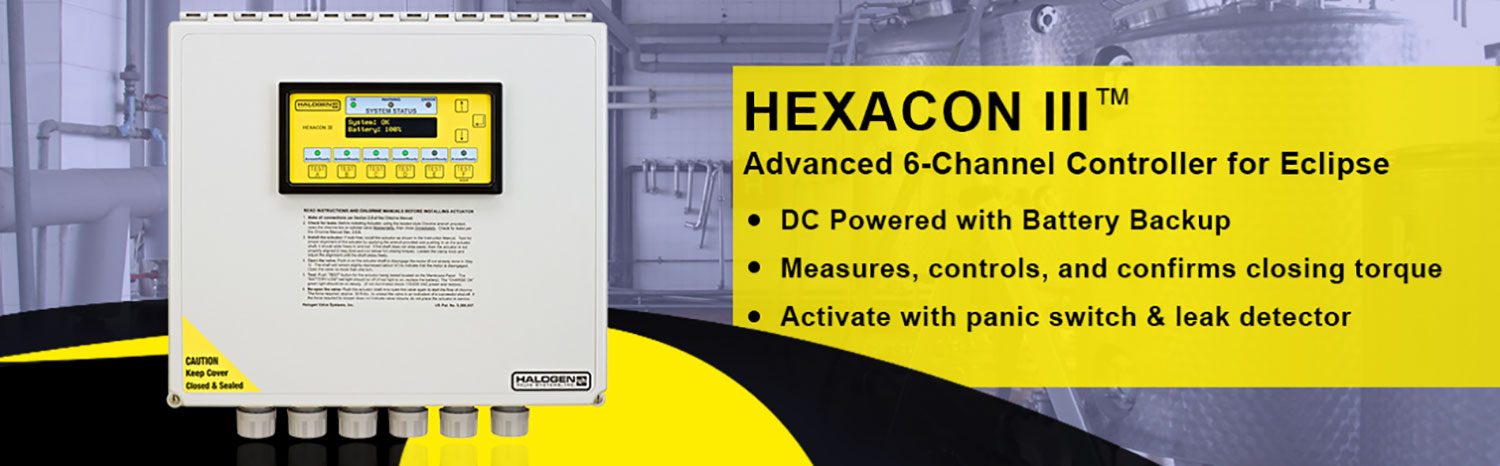

The Hexacon III controller allows for the control and operation of up to six Eclipse valve actuators. In the event of an emergency, a signal from a leak detector, panic shutoff switch or any other external contact closure will begin the rapid shut off process. The system closes a typical valve opened one full turn in about one second, substantially limiting the size of a chemical release. The controller’s DC power system provides up to 3 days of continuous battery backup to keep your feed system protected even in the event of an AC power interruption.
Features:
- Electronically Closes Valve In Less Than One Second!
- OLED System Information Display And Keypad
- Extensive Onboard Fault/Error Diagnostics
- Output Relays and RS232 Options Allow Remote Monitoring
- Battery Operated with Backup Power Protection
- Separate Emergency and Test Close Torque Values as Recommended by the Chlorine Institute
- Allows Manual Operation of Valve with Standard Wrench While Actuator Installed
- Over-Torque Protection
- NEMA 4X Rated Controller
- 3 Year Warranty
